On 24 July 2025, all services hosted on the Raspberry Pi 400 went offline. This was due to the Pi’s microSD card (which provides the root and boot filesystems) failing and producing I/O errors for write operations.

Timeline

All events happened on 24 July 2025. Times are quoted in the local timezone, Europe/London, which was BST (UTC+1) at the time.

Timeline of problems

  1. 02:00:00 – CPU usage becomes abnormally high, going from around 35% to 100%. It remains at 100% until metrics became unavailable.
    • Note: some backups are scheduled to run at 02:00, so that almost certainly triggered the CPU spike.
    • Normally, CPU usage spikes to between 80%–100% while these backups are being created, but only for about 5 minutes or less.
  2. 02:00:00 – Disk utilisation rises to around 48%, consistent with normal disk usage during backups.
  3. 02:15:12 – Disk backlog for the SD card peaks at 7 min 26 sec.
  4. 02:44 (01:44 UTC) – Monitoring from UptimeRobot detected that the Pi had stopped responding to HTTP requests. (Internal incident link)
  5. 03:37:39 – Disk utilisation rises to around 100%.
  6. Around 03:40 – Netdata metrics become unavailable
    • This is almost certainly because the write errors prevented Netdata from writing to its database.

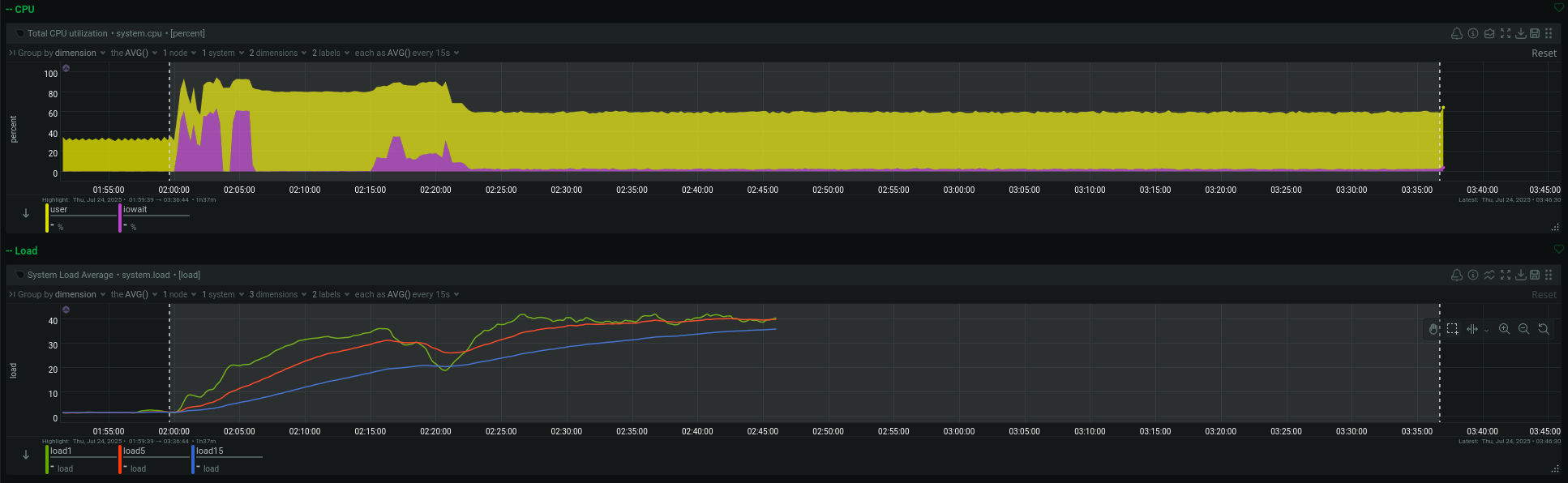

CPU usage and load during the incident

Timeline of troubleshooting

At around 12:00, I try to access Immich, and realise that the Pi is unresponsive. I attempt to troubleshoot by connecting my monitor to the Pi, but the monitor doesn’t even detect the Pi.

I restarted the Pi (forcing power off by holding Power for 10 seconds), and it soon started printing I/O error messages to the console.

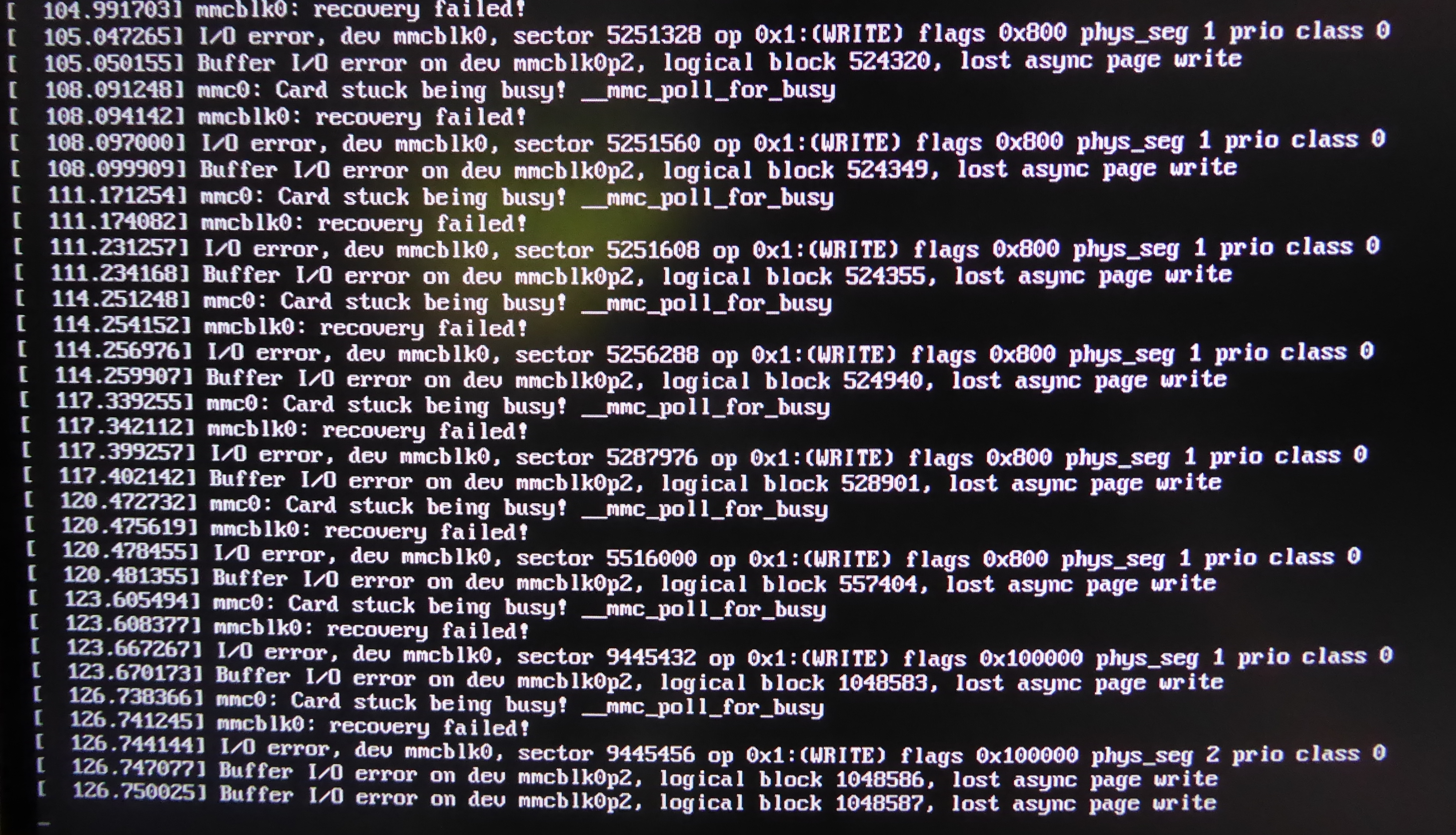

Photo of the virtual console output

Timeline of recovery

I used GNOME Disks to create a disk image from the failed SD card (under the assumption that read operations would still work correctly). I then used GNOME Disks to restore the image to a new SD card.

  1. I boot the Pi up with its new SD card
  2. 14:29 – NTP system time sync completes, giving the first correctly-timestamped journal entry after the incident
  3. 14:31:30 – Metrics become available in Netdata, indicating that the Pi has become operational again
  4. 14:33 – I check Immich and Home Assistant using a browser, and they are both operational

Conclusion

Two main factors allowed me to address the incident relatively quickly:

  • I attempted to use Immich on the same day that the failure happened, so I noticed the problem somewhat quickly.
  • The SD card was still readable and there hadn’t been any data corruption.

Had the first fact not been true, the Pi may have remained offline for a couple days or more, because I don’t have any notifications set up for when the Pi goes down. Had the second fact not been true, I would have had to manually re-deploy the OS and services to my Pi, a process which may have taken over one day and hasn’t been fully tested.

Lessons learnt

  • Netdata is great
  • SD cards are unreliable (but I already knew this)
  • GNOME Disks is great
  • Clonezilla doesn’t always work (I tried to clone the SD card using it, but it failed to copy the root partition)
  • I should have automatic notifications set up for when there’s a catastrophic problem like this (and probably for slightly less major problems too)

Steps taken after the incident

  1. 24 July 2025 – Updated and extended the Raspberry Pi deployment guide, to provide more guidance in case I do need to re-deploy the Pi in the future.
  2. 30 July 2025 – Set up email alerts on UptimeRobot for “RPi internet access” and ping.slevel.xyz
